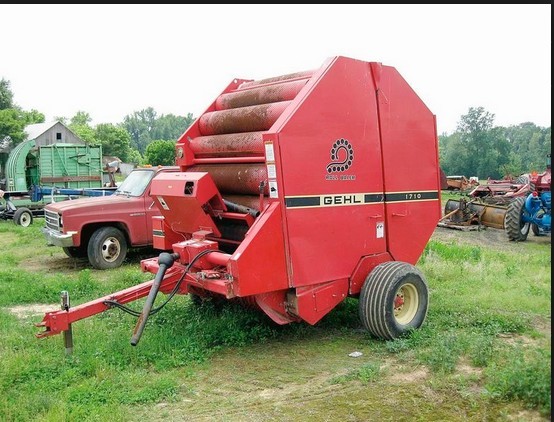

This is highly detailed parts catalog manual. All technical details taken directly from the manufacturer can be found in this manual, It is the factory manual from the manufacturer. Gehl 1710 Fixed Chamber Round Baler parts catalog manual is the same manual used by professional technicians, mechanics and workshops around the world.

Gehl 1710 Fixed Chamber Round Baler parts catalog manual has easy to read text sections with top quality diagrams and instructions, will guide you through fundamentals of maintaining and repairing, step-by-step, to teach you what the factory trained technicians already know by heart. For that reason, you will not find it difficult to repair or to maintain some of the innovative features loaded on the vehicle when you have the manual. Using this repair manual is the true way to keep your vehicle working properly.



Form No. : 906076 Replaces 904499

Manual Covers:

Introduction
Decal Locations
Drawbar (After SN19350)
Drawbar &Universal Joint (Before SN19351)
Wheel Assembly
Gearbox, Main Chain Drive & Coupler
Front Lower Chain Drive
Pickup Chain Drive & Clutch
Front Upper &Connector Chain Drives
Rear Door Chain Drive
Pickup Frame
Pickup Lift
Pickup & Guide Baffle
TIne Bar &Pickup
Pressure Rollers
Cross Frame &Twine Tie Mechanism (After SN20400)
Twine Delivery System (Before SN20401)
Knife Crosstube Assembly (Before SN20401)
Twine Box
Rear Door/Main Frame
Front Side Door &Guards
Rear Side Door &Guards
Main Drive Guards (After SN19350)
Main Drive Guards (Before SN19351)
Twine Mechanism Shield & Twine Tensioner (After SN20400)
Rear Dust Panel
Rear Door Hydraulics
Check Valves
Actuators
Gearbox (After SN19350)
Gearbox (Before SN19351)
Telescoping Drive (After SN19350 – Weasler)
Telescoping Drive (After SN19350 – Waltersheid)
Telescoping Drive (Before SN19351)
Hitchjack
Options & Accessories
Numericallndex
Standard Torque Specifications

******



============
**Total Pages: 64
**File Format: PDF
**Language: English
**Requirements: Adobe PDF Reader & WinZip
**Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…
